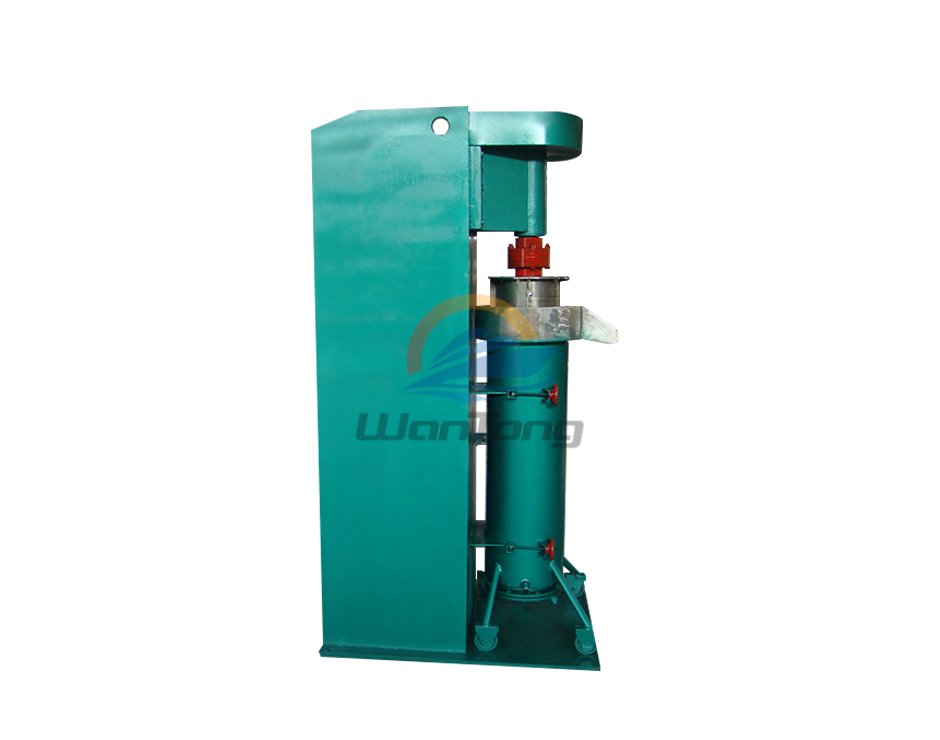

Vertical Sand Mill

PRODUCT DETAILS

▪ There Are Two Types Of Sand Mill,Vertical And Horizontal Widely Used:

Food Industry: Cocoa,Chocolate,Nut Sauce,Seasoning,Mayonnaise,Seasoning Etc;

Paint Industry: Coatings,Paints,Inks,Pigments,Pastes,Fillers,Dyes,Carbon Black;

Chemical Industry: Pharmaceuticals,Cosmetics,Fabric Protective Agents,Detergents;

Mineral Industry: Kaolin,Porcelain Clay,Ceramic Slurry, Refractory Clay;


▪ The sand mill drives the agitator to rotate by the transmission shaft,causing the grinding ball to move rapidly.By using strong stirring,the shear force of the ball is increased,causing the material to be impacted and sheared by the grinding ball,thus achieving the effect of grinding the material.

▪ The grinding ball material used in the sand mill can be glass,ceramics,stainless steel, zirconia etc.The agitator of the sand mill can be disc or pin type,and the material can be stainless steel or wear-resistant material.


Model

10L

20L

30L

40L

80L

120L

Power(KW)

5.5

7.5-11

11-15

15-18.5

22-30

30

Charging Pump

Pneumatic Or Gear Pump

Speed(RPM)

1320

1320

1200

1070

830

700

Water Consumption

1 m³/h

1.5 m³/h

Viscosity(pa.s)

≦2.0

Weight(Kg)

500

720

800

1000

1500

2000
