Main Features :
Certification：CE,ISO9001
Discharge Way：Scraper
Funcation：Cooling
Type：Normal Type
Roller Material：Hard Alloy,Ceramic
Body Material：SS304,SS316 Or Carbon Steel Can Be Choose
Speed：Controlled By Frequency Converter Or Fixed
Polish：Mirror Polish Or Non-Polish
▪ The Three Roll Mill is Widely Used In Paste:
1. Ink,Paint,Ink,Oil Pigment,Coatings
2. Food,Chocolate
3. Cosmetics
4. Medicine

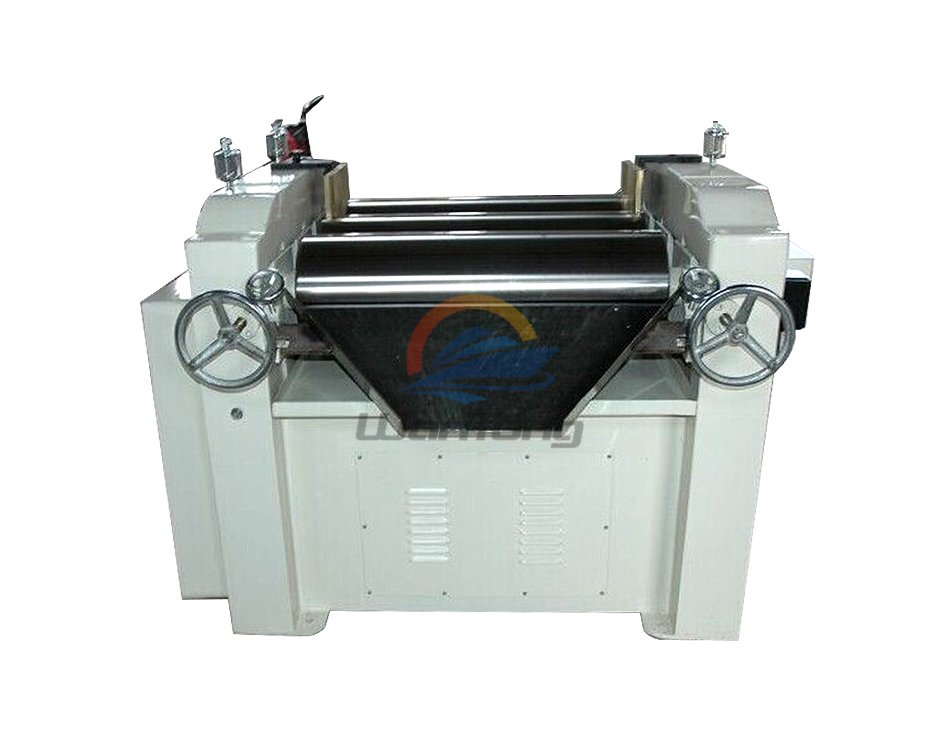

▪ The three roller mill operates at uneven speeds and friction caused by surface squeezing through three horizontally arranged rollers,which generate strong shear forces on adjacent rollers,forcing the material to be fully dispersed and grinded.
▪ The rollers of the three roll mill can be made of cold hard alloy material or ceramic material.The three roll mill is equipped with a cooling device to enable continuous operation.
Model | 65 | 150 | 260 | 315 | 405 |
Rollers Dia(mm) | 65 | 150 | 260 | 315 | 405 |
Rollers Length(mm) | 125 | 300 | 695 | 760 | 810 |
Speed Rate(S:M:F) | 1:3:9 | 1:2:4.98 | 1: 2.5:6.25 | 1:2.87:8.1 | 1:3:9 |
Power(KW) | 0.55 | 2.2 | 7.5 | 11 | 15 |
Weight(Kg) | 80 | 500 | 1800 | 2500 | 4000 |
