Main Features :
Certification：CE,ISO9001
Discharge Way：Bottom Valve,Side Valve
Funcation：Heating,Cooling,Vacuum,Spray
Type：Normal Type,Vacuum Type
Material：SS304,SS316 Or Carbon Steel Can Be Choose
Speed：Controlled By Frequency Converter Or Fixed
Polish：Mirror Polish Or Non-Polish
Blade：Ribbon

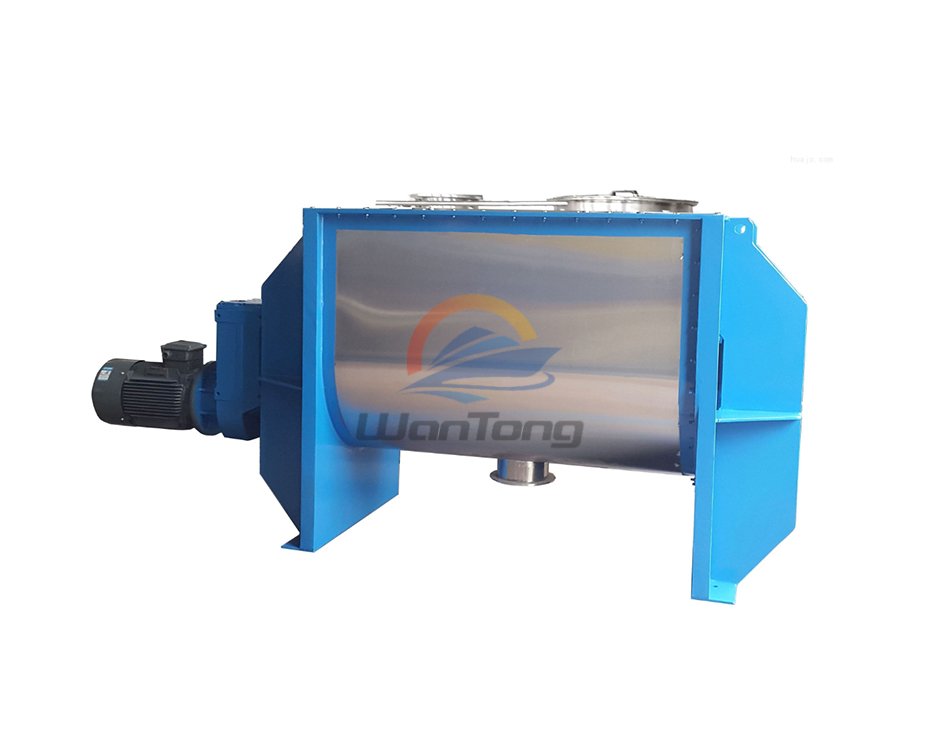

▪ Working Principle Of Ribbon Mixer:
Under the movement of the screw in the mixing shaft, the inner and outer screw flip the material over a large range.The inner screw moves the material to both sides, while the outer screw moves the material from both sides inward,mixing the material back and forth.The other part of the material is driven by the screw and moves radially along the axial direction, forming a convective circulation.The material are quickly and evenly mixed in a short period of time.
Ribbon mixer is used for mixing powder materials or powder with liquid materials, and is widely used in chemical, pharmaceutical, food, fertilizer, health products, dyes, pigments, rubber, building materials, milk powder, feed, additives, ceramics, refractory materials, rare earth, plastic glass, etc.
The ribbon mixer can add heating, cooling, vacuum and other functions as requirement.
Model | 100L | 200L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 8000L | 10000L |
Power(KW) | 1.1-3 | 3-4 | 3-5.5 | 4-11 | 7.5-15 | 15-22 | 18.5-30 | 37-55 | 37-55 | 45-75 |
Mixing Uniformity | ≧99% | |||||||||
Speed | As Customers’ Requirement | |||||||||
Heating Way | Electrical Heater In Jacket;Cycle Hot Water/Oil,Steam In Jacket | |||||||||
Cooling Way | Cycle Cold Water In Jacket | |||||||||
Vacuum | -0.098Mpa | |||||||||
Spray System | With Or Without | |||||||||
Weight(Kg) | 300 | 500 | 700 | 900 | 1800 | 3200 | 4100 | 6000 | 7500 | 8900 |
