Main Features :
Certification：CE,ISO9001
Discharge Way：Bottom Valve
Funcation：Heating,Cooling,Vacuum,Spray
Type：Normal Type,Vacuum Type
Material：S304,SS316 Or Carbon Steel Can Be Choose
Speed：Controlled By Frequency Converter Or Fixed
Polish：Mirror Polish Or Non-Polish
Blade：Plough Type

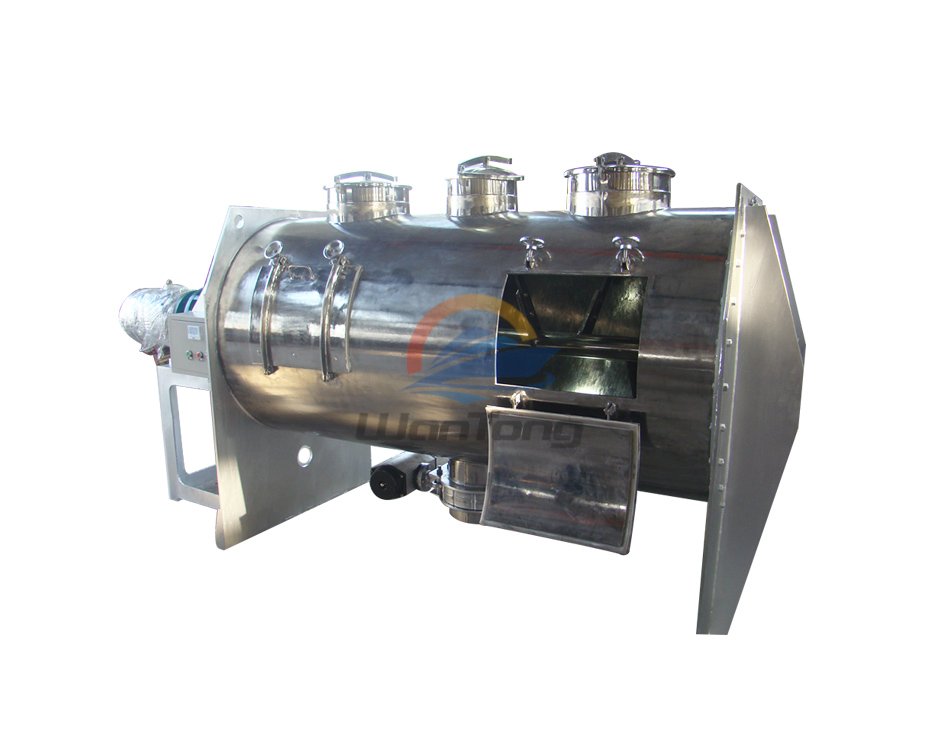

▪ The plough shear mixer is mainly used for powder mixing, and can also be used for mixing powder with liquid,block or viscous materials.The plough shear mixer continuously mix,crushes,and diffuses under the combined action of the plow blade and chopper blade,achieving the goal of uniform mixing in a short period of time.
▪ The plough shear mixer can be equipped with heating,cooling,vacuum,and spray functions as requirement.
▪ Plough shear mixer is widely used for:dry mortar,chemical material, pharmaceutical,building materials,plastics,adhesive,food,powder metallurgy,mining material,petroleum raw material etc.
Model | 100L | 200L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 8000L | 10000L |
Power(KW) | 1.1-3 | 3-4 | 3-5.5 | 4-11 | 7.5-15 | 15-22 | 18.5-30 | 37-55 | 37-55 | 45-75 |
Mixing Uniformity | ≧99% | |||||||||
Chopper | As Requirement | |||||||||
Speed | 63RPM Or As Requirement | |||||||||
Heating Way | Electrical Heater In Jacket;Cycle Hot Water/Oil,Steam In Jacket | |||||||||
Cooling Way | Cycle Cold Water In Jacket | |||||||||
Vacuum | -0.098Mpa | |||||||||
Spray System | With Or Without | |||||||||
Weight(Kg) | 300 | 500 | 700 | 900 | 1800 | 3200 | 4000 | 6000 | 7600 | 9000 |
