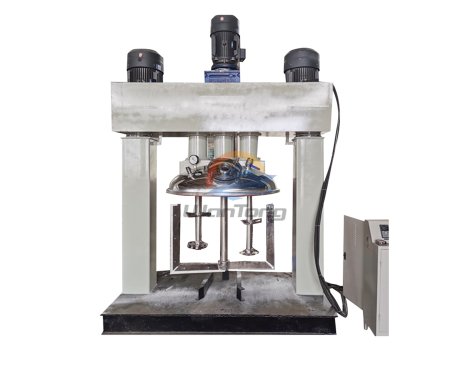

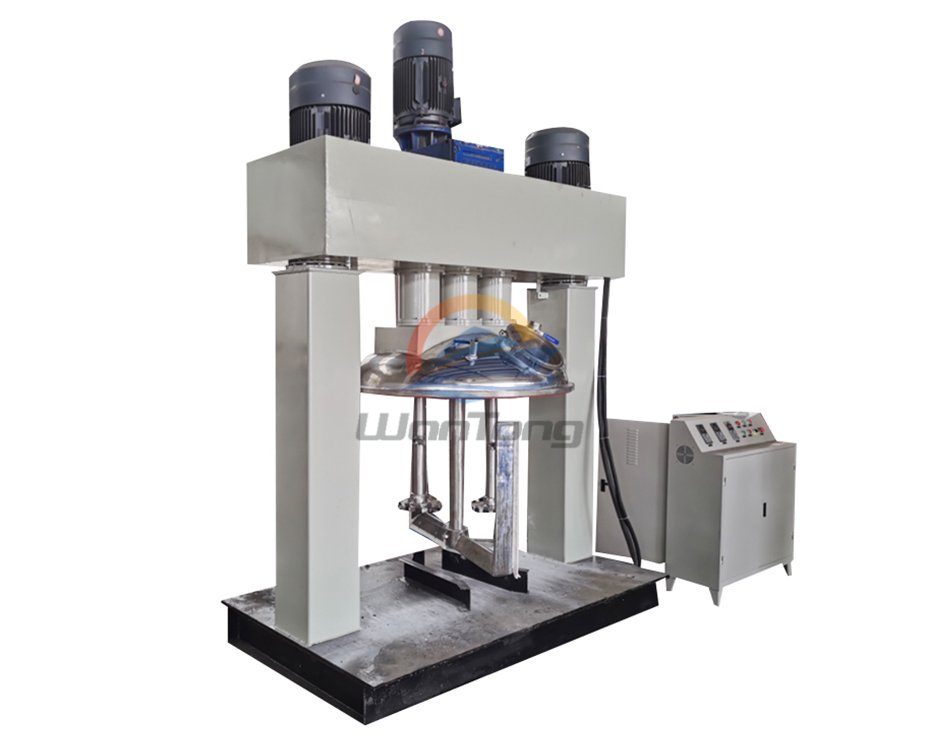

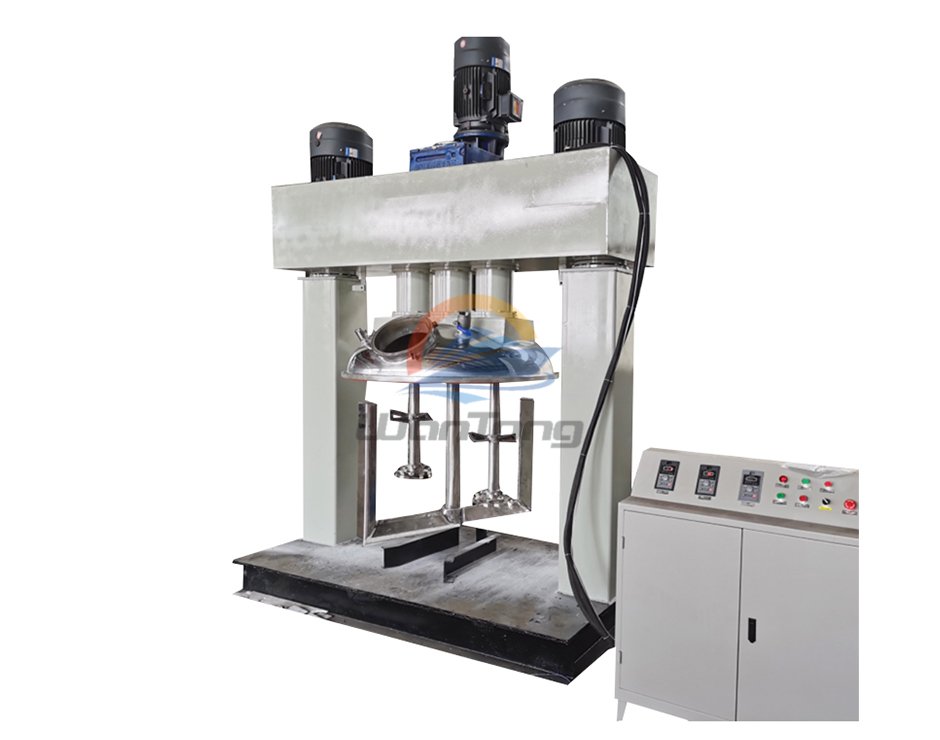

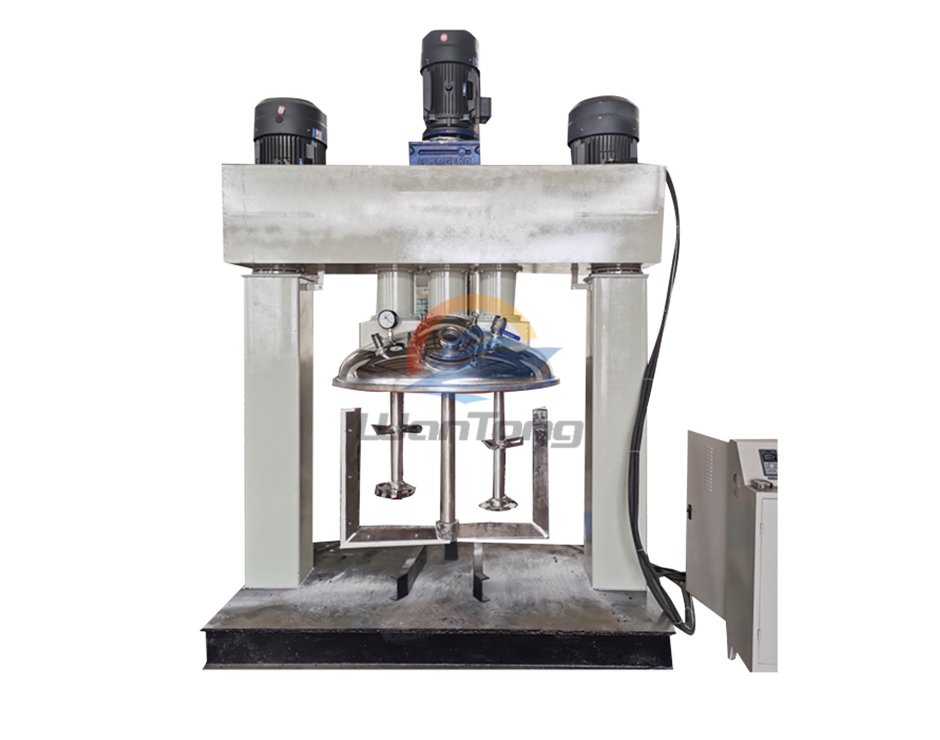

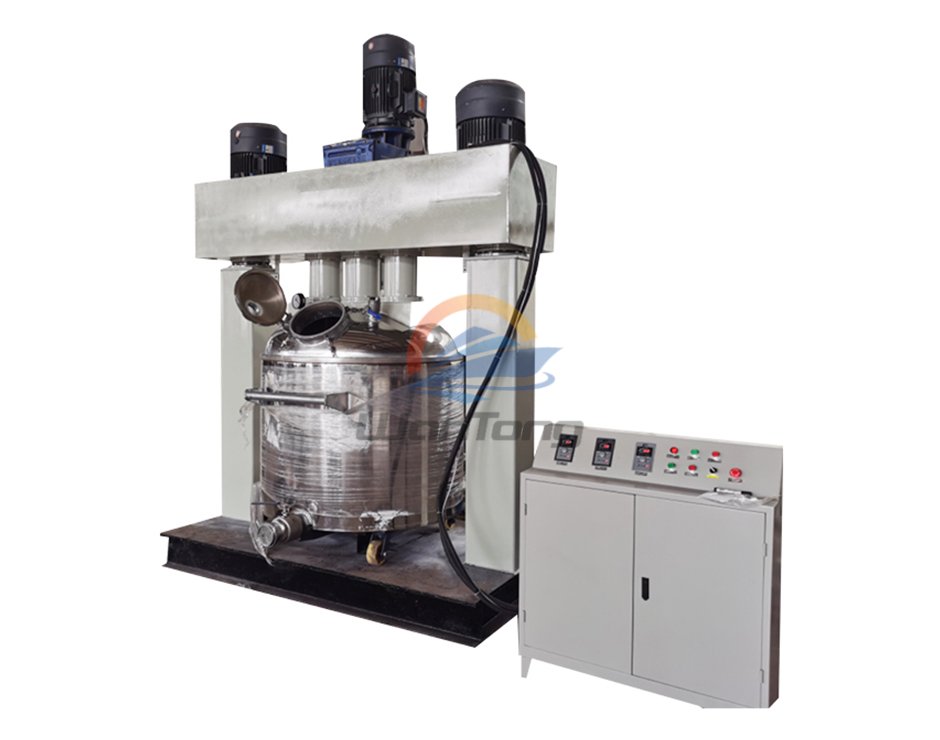

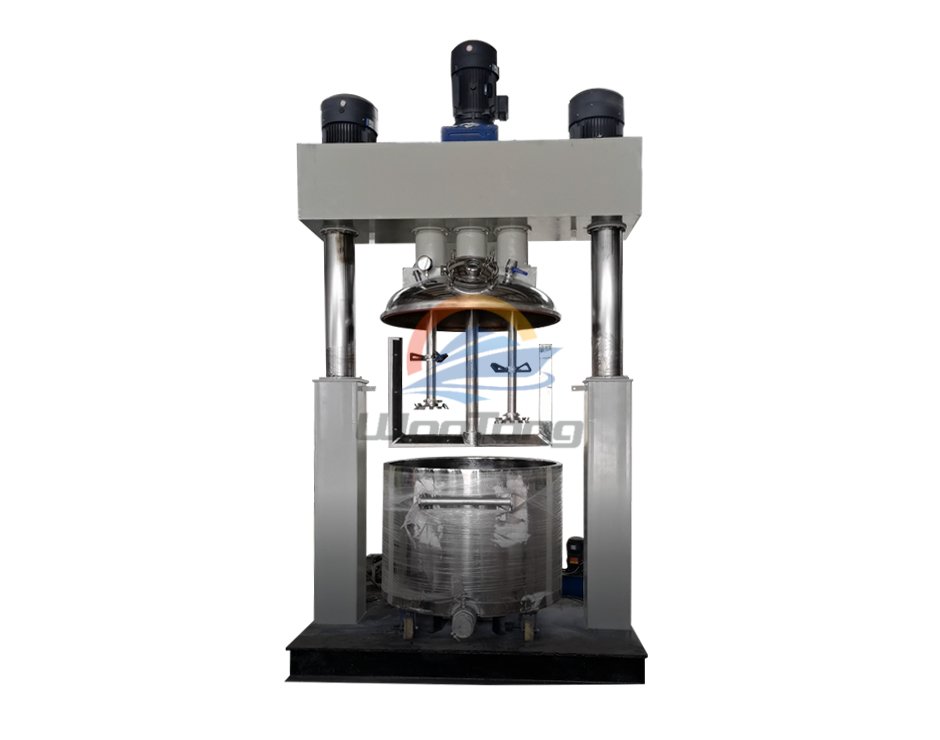

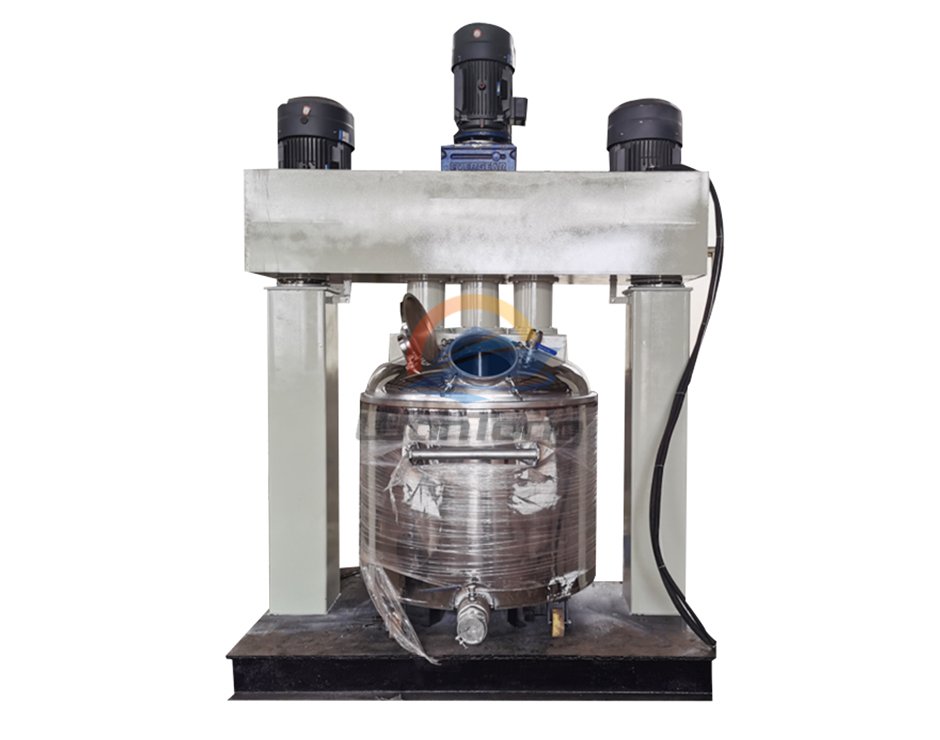

▪ The planetary mixer is used for dissolving,dispersing,mixing,milling,and reacting materials from powders to high viscosity and density materials.At the same time, heating,cooling,vacuum and other functions can be added according to process requirements.
▪ The planetary mixer used for viscous material:
1. Energy: battery paste,battery slurry etc
2. Electronics:solder paste,ceramic slurry,magnetic materials,silicone glue ink,electronic adhesive,PVC plastic,potting adhesive for electronic and electrical parts,hot melt,noble metal slurry etc
3. Chemicals:sealant glue,adhesive,resin rubber,ink,wall putty,abrasive paste,waxwork,synthetic rubber,synthetic resin,various powder materials and slurries etc
4. Pharmaceuticals: plaster,polymer gel,dental products etc
5. Cosmetics: moisturizer,lipstick, lotion, gel, mask, mascara, nail polish, toothpaste, soap etc
6.Food: pasty food,seasoning, jam, chocolate sauce etc
Model | Motor Power (KW) | Heating Way | Cooling Way | Vacuum Degree (MPA) | Pressure (MPA) | Shape Size (M) | Weight (KG) |
2L | 0.75-1.1 | Electrical,Cycle Steam/ Hot Oil/Hot Water In Jacket | Cycle Cold Water In Jacket | -0.098(Vacuum Type) | 0.45(Pressure Type) | 1.1*0.4*1.7 | 200 |
5L | 1.1-1.5 | 1.1*0.5*1.7 | 300 |
10L | 1.1-2.2 | 1.2*0.5*1.8 | 400 |
50L | 5.5-11 | 1.3*0.7*1.5 | 500 |
100L | 5.5-15 | 1.5*0.8*1.6 | 600 |
200L | 7.5-18.5 | 1.6*1.2*1.6 | 800 |
300L | 7.5-22 | 1.8*1.2*1.7 | 900 |
500L | 11-22 | 2.2*1.2*2.5 | 2000 |
1000L | 15-37 | 2.6*1.3*2.9 | 4000 |
1500L | 18.5-37 | 3.0*1.5*3.0 | 5000 |
2000L | 22-45 | 3.5*2.2*3.2 | 6000 |
3000L | 30-55 | 4.0*2.2*3.5 | 9000 |
