Main Features :
Certification：CE,ISO9001
Discharge Way：Bottom Valve
Funcation：Heating,Cooling,Vacuum,Pressure
Type：Normal Type,Pressure Type,Vacuum Type
Material：SS304,SS316 Or Carbon Steel Can Be Choose
Speed：Controlled By Frequency Converter Or Fixed
Polish：Mirror Polish Or Non-Polish
Blade：Paddle Shape,PropellerShape,Anchor Shape,Frame Shape,Disc Shape Or Customized

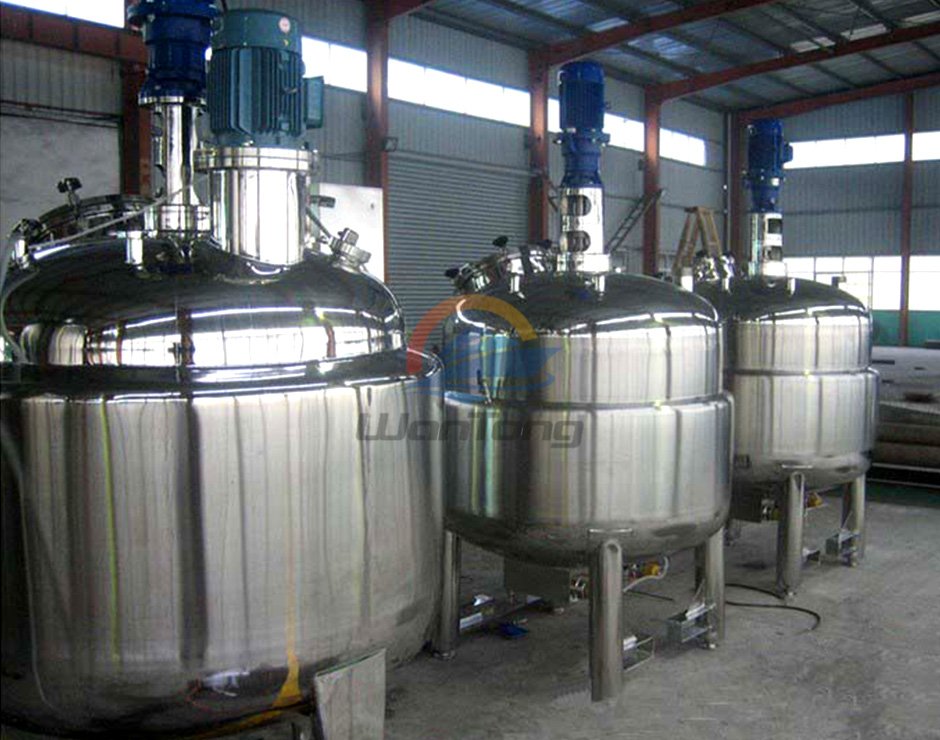

▪ There Are Three Models Mixing Tank:
1.Single Shaft Mixing Tank
2.Double Shaft Mixing Tank
3.Triple Shaft Mixing Tank
▪ The agitator type of mixing tank can be paddle type,anchor type,frame type,screw type,scraper type,dispersion impeller type,turbine type,high shear type and propeller type etc.
▪ The mixing tank is widely used in industries such as petroleum,chemical,rubber, pesticides,dyes,pharmaceuticals,food etc.They can be equipped with heating,cooling, vacuum and other functions as requirement.
Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 10000L |
Power(KW) | 1.1 | 1.1 | 1.5 | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 15 |
Diameter (mm) | 400 | 500 | 800 | 900 | 1200 | 1400 | 1600 | 2000 | 2400 |
Working Pressure | Ordinary Or Vacuum | ||||||||
Heating Way | Electrical Heater/Steam/Thermal Oil/Water | ||||||||
Cooling Way | Cold Water/Oil | ||||||||
Speed | With Frequency Converter Or Without | ||||||||
Weight(Kg) | 150 | 200 | 300 | 500 | 1000 | 1600 | 2000 | 2800 | 3800 |
