▪ The Reaction Kettle Classified As Structure:
1. Jacket Reaction Kettle
2. Internal Coil Reaction Kettle,

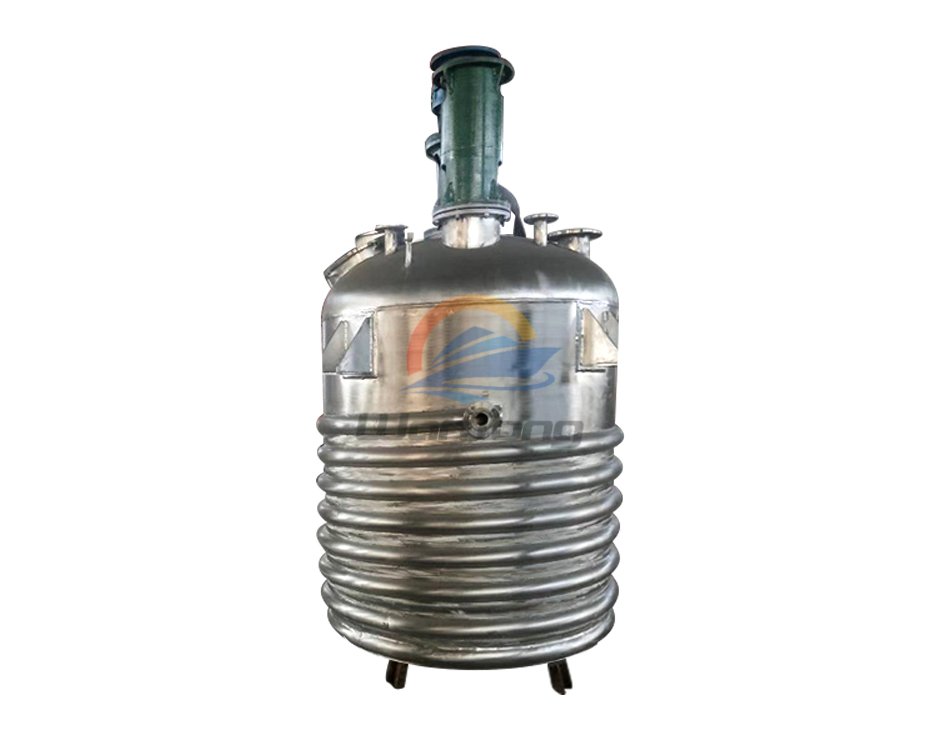

3. External Coil Reaction Kettle
▪ The Reactor Classified As Function:
1. Heated Reactor,
2. Cold Reactor,
3. Pressure Reactor,
4. Vacuum Reactor
▪ The agitator type of reactor can be paddle type,anchor type,frame type,screw type,scraper type,dispersion impeller type,turbine type,high shear type and propeller type etc.
▪ Reactor is widely used in industries such as petroleum,chemical,rubber,pesticides, dyes,pharmaceuticals,and food.According to different process,it can complete process such as vulcanization,nitrification,hydrogenation,alkylation,polymerization,and condensation.
Model | 50L | 100L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 10000L |
Power(KW) | 1.1 | 1.1 | 1.5 | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 15 |
Diameter(mm) | 400 | 500 | 800 | 900 | 1200 | 1400 | 1600 | 2000 | 2400 |
Working Pressure | Ordinary/Vacuum/Pressure |
Heating Way | Electrical Heater/Steam/Thermal Oil/Water |
Cooling Way | Cold Water/Oil |
Speed | With Frequency Converter Or Without |
Weight(Kg) | 280 | 350 | 500 | 970 | 1700 | 2300 | 3000 | 4200 | 6800 |
