Main Features :
Certification：CE,ISO9001
Discharge Way：Hydraulic Tilt,Screw Extruding,Bottom Valve
Funcation：Heating,Cooling,Vacuum,Pressure
Type：Normal Type, Pressure Type, Vacuum Type
Material：SS304,SS316 Or Carbon Steel Can Be Choose
Speed：Controlled By Frequency Converter Or Fixed
Polish：Mirror Polish Or Non-Polish
Blade：Z Shape,Sigma Shape Or Customized
▪ The Sigma/Z Blade Kneader Mixer According To Function：
Vacuum Type,Pressure Type,Atmospheric Pressure Type,Heating Type,Cooling Type
▪ The Heating Methods Can Be：
Ordinary Electric Heating,Zero Distance Heating,Jacket Steam Heating,Jacket Oil Heating, Jacket Water Heating
▪ There Are Three Discharge Methods For Sigma/Z Blade Kneader Mixer：
Tilt Cylinder Discharge, Screw Extruding Discharge, Bottom Valve Discharge

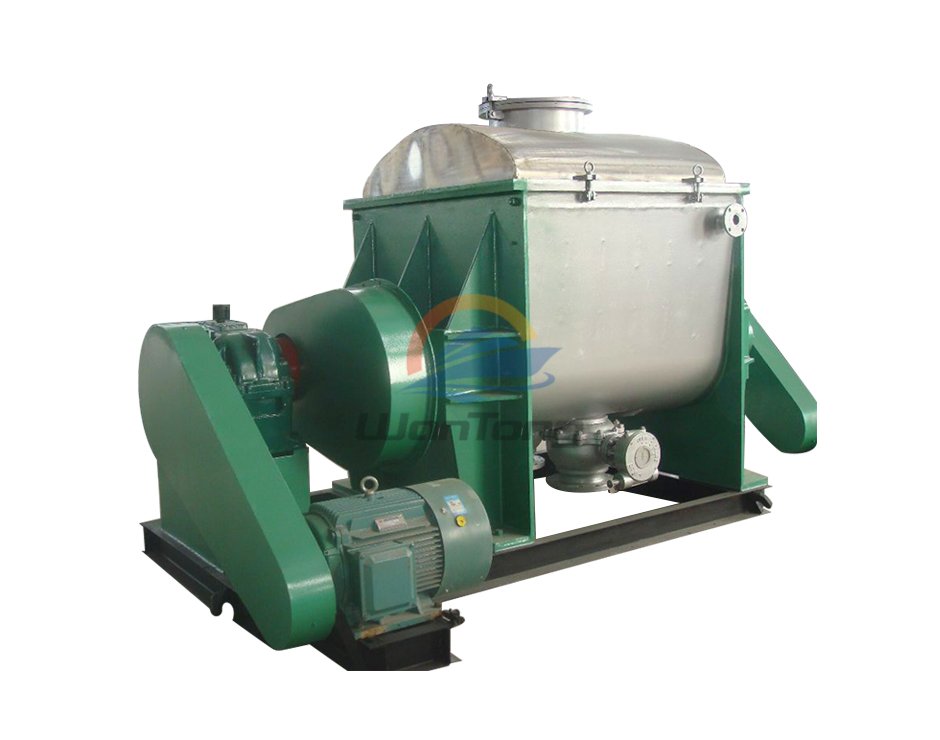

▪ The sigma/z blade kneader mixer are generally used for kneading, mixing, crushing, dispersing, and reaggregating various chemical products of high viscosity slurries or elastoplastic material.
▪ The sigma/z blade kneader mixer are widely used for high-density sealants, neutral glass glue, acidic glass glue, hot melt,silicone rubber, butyl rubber, rubber, pulp, cellulose, batteries, inks, pigments, dyes, pharmaceuticals, resins, plastics, cosmetics, carbon paste, clay, plasticine, BMC and other chemical products,it can also be used for dough, syrup, chewing gum, bubble gum, chocolate and other food products.
Model | Motor Power (KW) | Heating Way | Steam Pressure (MPA) | Vacuum Degree (MPA) | Pressure (MPA) | Shape Size (M) | Weight (KG) |
2L | 1.1-2.2 | Electrical,Cycle Steam/ Hot Oil/Hot Water In Jacket | Usually 0.3(Can Add As Requirement) | -0.098(Vacuum Type) | 0.45(Pressure Type)
| 1.1*0.4*0.5 | 150 |
5L | 1.1-2.2 | 1.3*0.5*0.6 | 200 | ||||
10L | 1.1-2.2 | 1.4*0.5*0.7 | 300 | ||||
50L | 2.2-7.5 | 1.5*0.7*1.0 | 600 | ||||
100L | 4-11 | 1.8*0.6*1.3 | 1000 | ||||
200L | 5.5-15 | 2.0*1.2*1.5 | 1800 | ||||
300L | 5.5-22 | 2.5*1.2*1.6 | 2200 | ||||
500L | 11-22 | 2.8*1.4*1.6 | 3000 | ||||
1000L | 15-37 | 3.0*1.5*1.8 | 4500 | ||||
1500L | 18.5-45 | 3.3*1.9*1.9 | 5500 | ||||
2000L | 37-75 | 3.5*2.2*2.2 | 6800 | ||||
3000L | 45-110 | 4.5*2.2*2.2 | 9500 |
